1881477
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

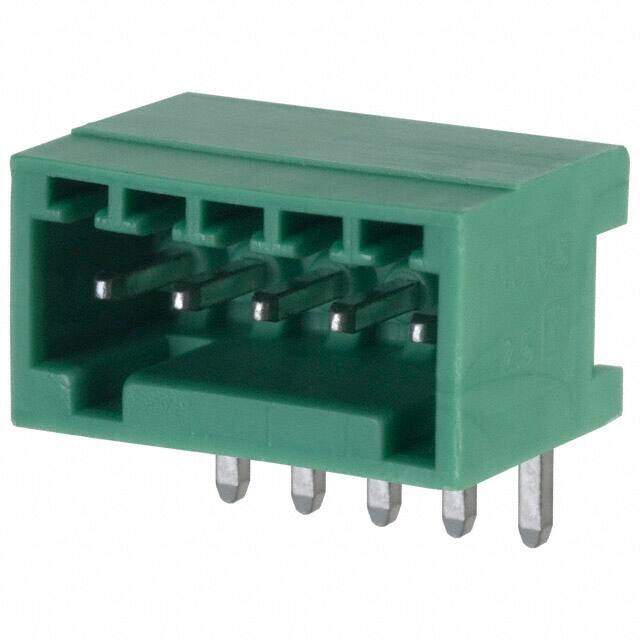

TERM BLOCK HDR 5POS 90DEG 2.5MM
PDF
/
Buying Options
Total Price: USD $1.52
Unit Price: USD $1.5224
≥1 USD $1.5224
Inventory: 602
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Thickness 10mm
Width 14.4mm
Length 10.1mm
Height 8.1mm
Technical
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 5
Voltage - IEC 320V
Number of Decks 1
Number of Poles 5
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 20 AWG
Current 4A
Number of Levels 1
Max Current Rating 4A
Contact Tail Length 0.150 3.81mm
Voltage 125V
Approval Agency EN, UL, VDE
Termination Style Solder
Current Rating 4A
Insulation Height 0.319 8.10mm
Depth 10.1mm
Orientation Right Angle
Pitch 0.098 2.50mm
Additional Feature PA, 94V-0
Voltage - Rated 32V
Gender Male
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series MICRO-COMBICON MC
Published 2000
Packaging Bulk
Physical
Weight 1.05001g
Housing Material Polyamide (PA), Nylon
Insulation Material Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
