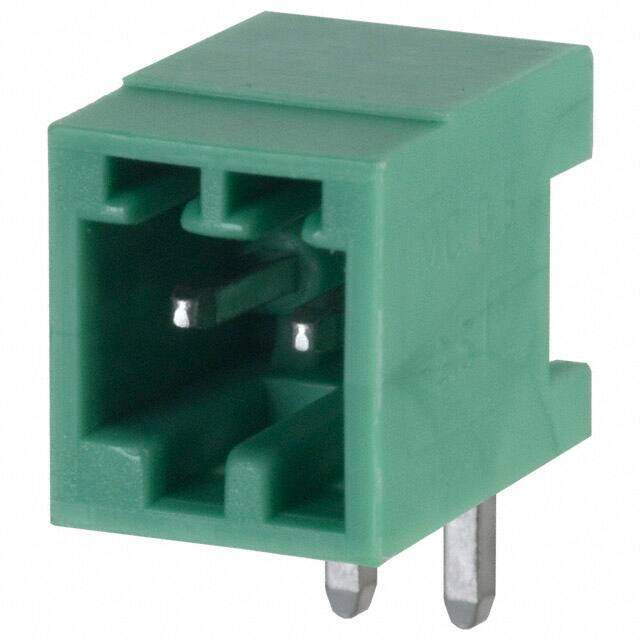

1881448 image
Favorite
1881448 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 2POS 90DEG 2.5MM
PDF
/
Buying Options
Total Price: USD $0.78
Unit Price: USD $0.7832
≥1 USD $0.7832
≥10 USD $0.76296
≥100 USD $0.7128
≥500 USD $0.655776
≥1000 USD $0.643491
Inventory: 1134
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 500.000539mg

Technical

Packaging Bulk
Published 2010
Series MICRO-COMBICON MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 32V
Additional Feature POLYAMIDE, 94V-0
HTS Code 8536.69.40.40
Pitch 0.098 2.50mm
Orientation Right Angle
Depth 10.1mm
Insulation Height 0.319 8.10mm
Reach Compliance Code unknown
Current Rating 4A
Termination Style Solder
Approval Agency EN, UL, VDE
Voltage 125V
Contact Tail Length 0.150 3.81mm
Max Current Rating 4A
Number of Levels 1
Current 4A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 26 AWG
Number of Poles 2
Number of Decks 1
Voltage - IEC 320V
Number of Ways 2
Header Orientation 90°, Right Angle

Dimensions

Height 8.1mm
Length 6.9mm
Width 11.9mm
Thickness 2.5mm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
