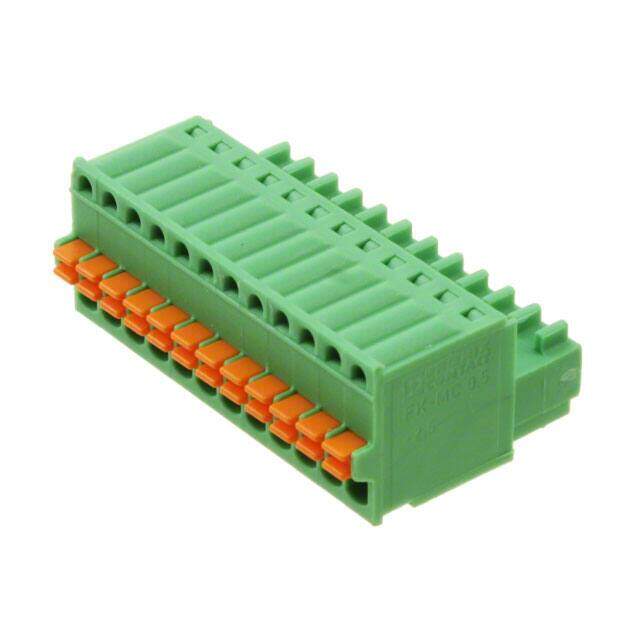

1881422
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 12POS STR 2.5MM
PDF
/
Buying Options
Total Price: USD $14.95
Unit Price: USD $14.9512
≥1 USD $14.9512
≥10 USD $14.542
≥100 USD $13.59072
≥500 USD $12.50348
≥1000 USD $12.269382
Inventory: 309
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 6.89999g
Technical
Packaging Bulk
Published 2008
Series MICRO-COMBICON FK-MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 100V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Voltage - Rated DC 80V
Pitch 0.098 2.50mm
Orientation Straight
Depth 19.2mm
Insulation Height 0.463 11.76mm
Current Rating 4A
Termination Style Screwless - Leg Spring, Push-In Spring
Approval Agency CB, UL, VDE
Lead Pitch 2.5mm
Number of Contacts 12
Contact Gender Female
Voltage 125V
Max Supply Voltage 80V
Max Current Rating 4A
Number of Levels 1
Current 4A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 26 AWG
Number of Decks 1
Wire Gauge or Range - AWG 20-28 AWG
Voltage - IEC 320V
Number of Ways 12
Safety Approval CB; CCA; CUL; EAC; UL; VDE
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-0.5mm2
Stripping Length 8mm
Wire Cross Section 0.5 mm2
Fastening Method SPRING LOADED
Dimensions
Height 19.05mm
Length 30.6mm
Width 30.6mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
