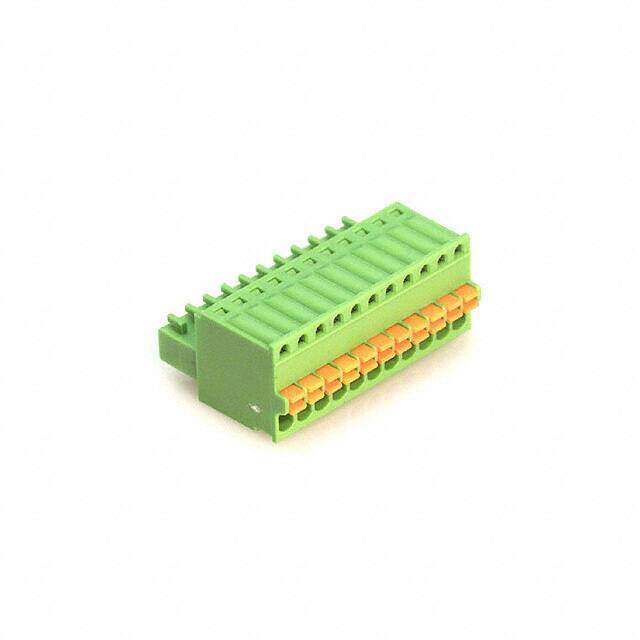

1881419 image
Favorite
1881419 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 11POS STR 2.5MM
PDF
/
Buying Options
Total Price: USD $13.7
Unit Price: USD $13.7016
≥1 USD $13.7016
≥10 USD $13.33024
≥100 USD $12.45816
≥500 USD $11.46156
≥1000 USD $11.246963
Inventory: 137
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 6.300001g

Technical

Packaging Bulk
Published 2010
Series MICRO-COMBICON FK-MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 100V
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Voltage - Rated DC 80V
Pitch 0.098 2.50mm
Orientation Straight
Depth 11.75mm
Insulation Height 0.463 11.76mm
Reach Compliance Code unknown
Current Rating 4A
Termination Style Screwless - Leg Spring, Push-In Spring
Approval Agency CB, UL, VDE
Lead Pitch 2.5mm
Number of Contacts 11
Voltage 125V
Max Current Rating 4A
Number of Levels 1
Current 4A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 20 AWG
Number of Decks 1
Wire Gauge or Range - AWG 20-28 AWG
Voltage - IEC 320V
Number of Ways 11
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-0.5mm2
Stripping Length 8mm
Wire Cross Section 0.25 mm2
Fastening Method SPRING LOADED

Dimensions

Height 19.05mm
Length 28.1mm
Width 19.2mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
