1881406
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

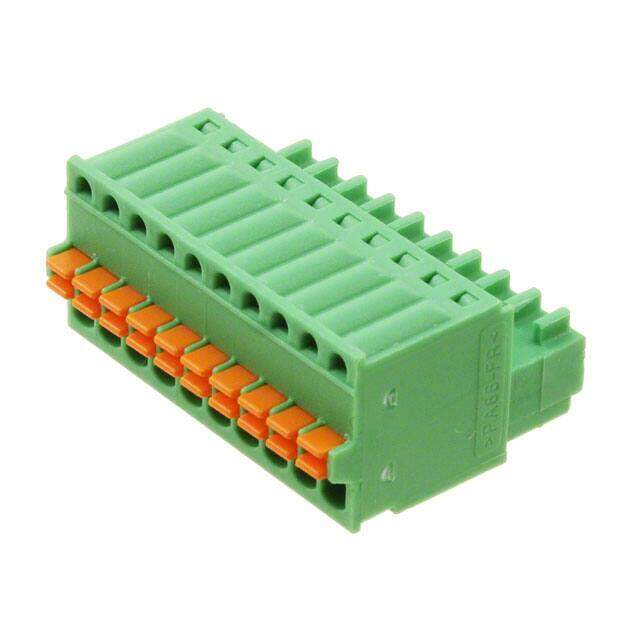

TERM BLOCK PLUG 10POS STR 2.5MM
PDF
/
Buying Options
Total Price: USD $12.49
Unit Price: USD $12.4872
≥1 USD $12.4872
≥10 USD $12.144
≥100 USD $11.34936
≥500 USD $10.441464
≥1000 USD $10.245946
Inventory: 1599
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 25.6mm
Length 25.6mm
Height 19.05mm
Technical
Fastening Method SPRING LOADED
Wire Cross Section 0.5 mm2
Stripping Length 8mm
Wire Gauge or Range - mm2 0.14-0.5mm2
Plug Wire Entry 180°
Safety Approval UL; VDE
Number of Ways 10
Voltage - IEC 320V
Wire Gauge or Range - AWG 20-28 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire/Cable Gauge 20 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 20 AWG
Current 4A
Number of Levels 1
Max Current Rating 4A
Max Supply Voltage 100V
Voltage 125V
Number of Contacts 10
Lead Pitch 2.5mm
Approval Agency CB, UL, VDE
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 4A
Insulation Height 0.463 11.76mm
Depth 19.2mm
Orientation Straight
Pitch 0.098 2.50mm
Voltage - Rated DC 80V
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Voltage - Rated 100V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series MICRO-COMBICON FK-MC
Published 2008
Packaging Bulk
Physical
Weight 6.150004g
Housing Material Polyamide (PA), Nylon
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper
Supply Chain
Factory Lead Time 7 Weeks
