1881396
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

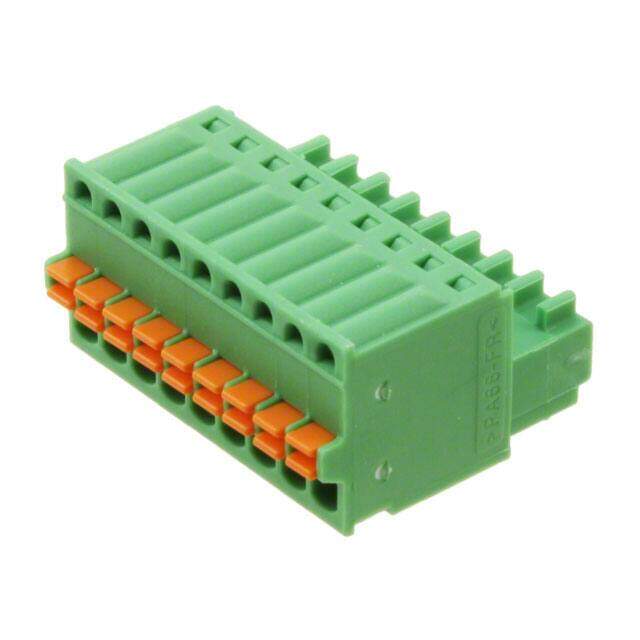

TERM BLOCK PLUG 9POS STR 2.5MM
PDF
/
Buying Options
Total Price: USD $11.23
Unit Price: USD $11.2288
≥1 USD $11.2288
≥10 USD $10.92344
≥100 USD $10.20888
≥500 USD $9.39224
≥1000 USD $9.216346
Inventory: 269
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 5.120009g
Technical
Packaging Bulk
Published 2008
Series MICRO-COMBICON FK-MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 100V
Voltage - Rated DC 80V
Pitch 0.098 2.50mm
Orientation Straight
Depth 11.75mm
Insulation Height 0.463 11.76mm
Current Rating 4A
Termination Style Screwless - Leg Spring, Push-In Spring
Approval Agency CB, UL, VDE
Lead Pitch 2.5mm
Number of Contacts 9
Voltage 125V
Max Current Rating 4A
Number of Levels 1
Current 4A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 20 AWG
Number of Decks 1
Wire Gauge or Range - AWG 20-28 AWG
Voltage - IEC 320V
Number of Ways 9
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-0.5mm2
Stripping Length 8mm
Wire Cross Section 0.25 mm2
Fastening Method SPRING LOADED
Dimensions
Height 19.05mm
Length 11.75mm
Width 23.1mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
