Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

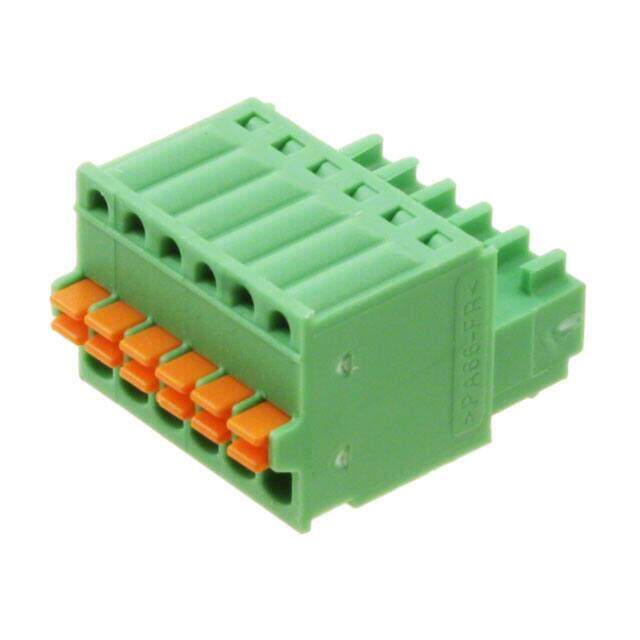

Description TERM BLOCK PLUG 6POS STR 2.5MM
PDF
/
Buying Options
Total Price: USD $7.46
Unit Price: USD $7.4624
≥1 USD $7.4624
≥10 USD $7.26264
≥100 USD $6.78744
≥500 USD $6.24448
≥1000 USD $6.127546
Inventory: 5959
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Copper
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 3.47001g

Technical

Packaging Bulk
Published 2008
Series MICRO-COMBICON FK-MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 100V
Additional Feature PA, UL 94V0
Voltage - Rated DC 80V
Pitch 0.098 2.50mm
Orientation Straight
Depth 19.2mm
Insulation Height 0.463 11.76mm
Current Rating 4A
Termination Style Screwless - Leg Spring, Push-In Spring
Approval Agency CB, UL, VDE
Lead Pitch 2.5mm
Number of Contacts 6
Contact Gender Female
Voltage 125V
Max Supply Voltage 80V
Max Current Rating 4A
Number of Levels 1
Current 4A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 20 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 20-28 AWG
Voltage - IEC 320V
Number of Ways 6
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-0.5mm2
Stripping Length 8mm
Wire Cross Section 0.25 mm2
Fastening Method SPRING LOADED

Dimensions

Height 15.6mm
Length 15.6mm
Width 19.05mm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
