1881341
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

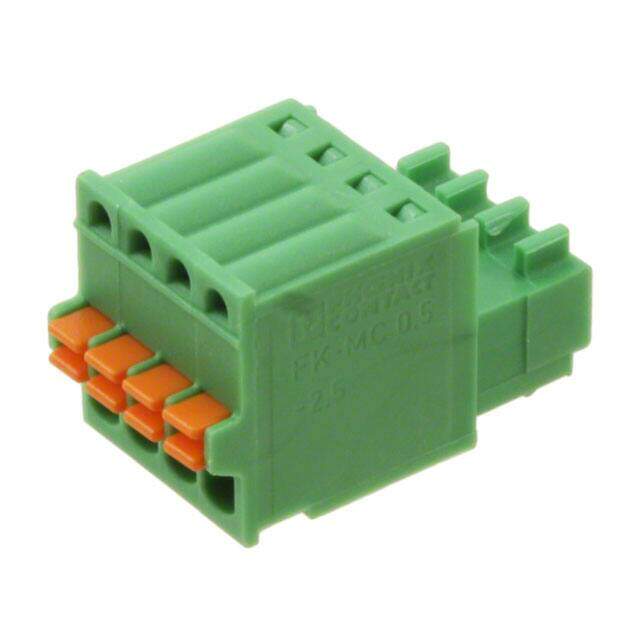

TERM BLOCK PLUG 4POS STR 2.5MM
PDF
/
Buying Options
Total Price: USD $4.97
Unit Price: USD $4.972
≥1 USD $4.972
≥10 USD $4.83912
≥100 USD $4.52232
≥500 USD $4.160552
≥1000 USD $4.082637
Inventory: 1030
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 19.05mm
Length 10.6mm
Height 11.75mm
Technical
Fastening Method SPRING LOADED
Wire Cross Section 0.25 mm2
Stripping Length 8mm
Wire Gauge or Range - mm2 0.14-0.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 4
Voltage - IEC 320V
Wire Gauge or Range - AWG 20-28 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 28 AWG
Current 4A
Number of Levels 1
Max Current Rating 4A
Max Supply Voltage 80V
Voltage 125V
Number of Contacts 4
Lead Pitch 2.5mm
Approval Agency CB, UL, VDE
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 4A
Insulation Height 0.463 11.76mm
Depth 19.2mm
Orientation Straight
Pitch 0.098 2.50mm
Voltage - Rated DC 80V
Voltage - Rated 100V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series MICRO-COMBICON FK-MC
Published 2010
Packaging Bulk
Physical
Weight 2.320012g
Housing Material Polyamide (PA), Nylon
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper
Supply Chain
Factory Lead Time 7 Weeks
