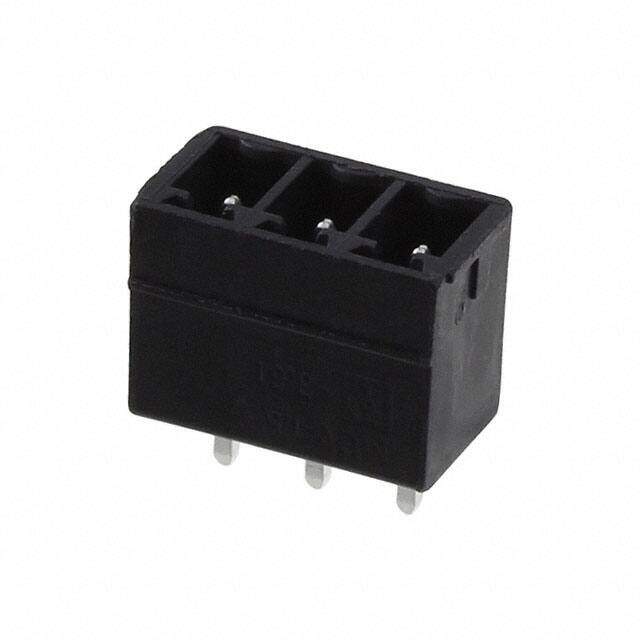

1880821
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pin enclosure - PCB MCV Total number of pins 3 Phoenix Contact 1880821 Contact spacing: 3.81 mm 50 pc(s)
PDF
/
Buying Options
Total Price: USD $0.8
Unit Price: USD $0.8008
≥1 USD $0.8008
Inventory: 119
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Technical
Packaging Bulk
Published 2011
Series COMBICON MCV
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Color Black
Number of Rows 1
Voltage - Rated 160V
Additional Feature SAFETY APPROVAL: CSA
Pitch 0.150 3.81mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Number of Levels 1
Current 8A
Number of Decks 1
Voltage - IEC 160V
Number of Ways 3
Safety Approval CB; CCA; CUL; GOST; UL; VDE
Header Orientation Vertical
Dimensions
Height 12.6mm
Length 7.25mm
Width 12.82mm
Compliance
RoHS Status RoHS Compliant
