1880384
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

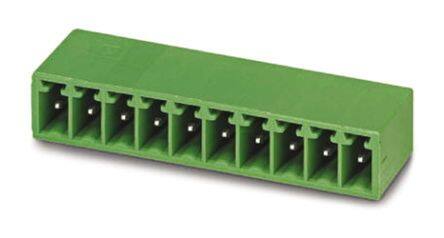

Pluggable Terminal Blocks 10 Pos 5.08mm pitch Press In Header
PDF
/
Inventory: 1134
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Number of Decks 1
Voltage - IEC 400V
Number of Ways 10
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 12A
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Contact Tail Length 0.165 4.19mm
Voltage 300V
Termination Style Press-Fit
Current Rating 12A
Insulation Height 0.339 8.61mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PBT, UL 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 10
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series COMBICON EMSTBA
Published 2010
Packaging Bulk
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Physical
Weight 4.500005g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
