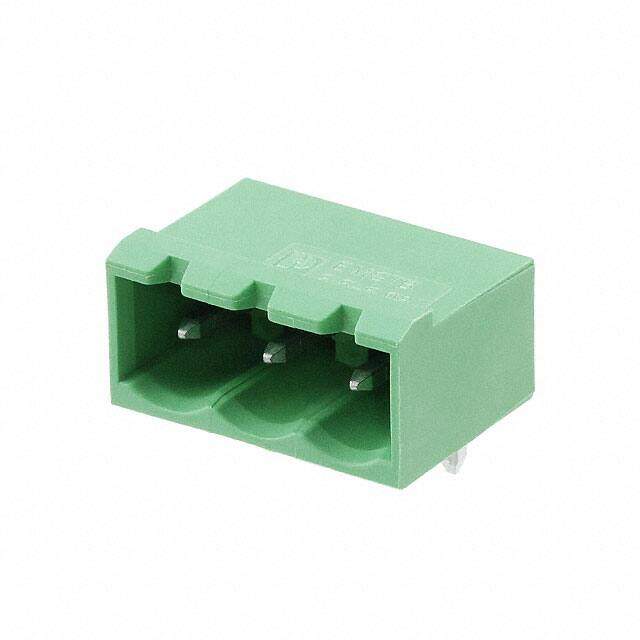

1880313
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Press In Header
PDF
/
Inventory: 1071
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 17.24mm
Length 12mm
Height 12.8mm
Technical
Current - IEC 12A
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 3
Voltage - IEC 400V
Number of Decks 1
Current 15A
Number of Levels 1
Contact Tail Length 0.165 4.19mm
Voltage 300V
Termination Style Press-Fit
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.339 8.61mm
Pitch 0.200 5.08mm
Additional Feature PBT, UL 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 3
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series COMBICON EMSTBA
Published 2011
Packaging Bulk
Physical
Weight 1.529995g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 3 Weeks
