1879366
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

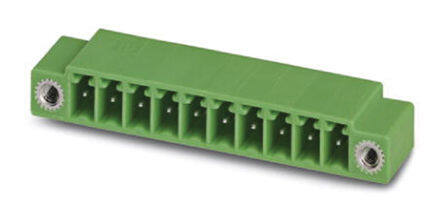

Pluggable Terminal Blocks 10 Pos 3.81mm pitch Press In Header
PDF
/
Inventory: 1147
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 48.49mm
Length 48.49mm
Height 12.6mm
Technical
Header Orientation Vertical
Safety Approval UL
Number of Ways 10
Voltage - IEC 250V
Number of Decks 1
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.150 3.81mm
Voltage 300V
Termination Style Press-Fit
Current Rating 8A
Insulation Height 0.362 9.20mm
Depth 7.25mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 10
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON EMCV
Published 2011
Packaging Bulk
Physical
Weight 3.489996g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 3 Weeks
