1879337
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

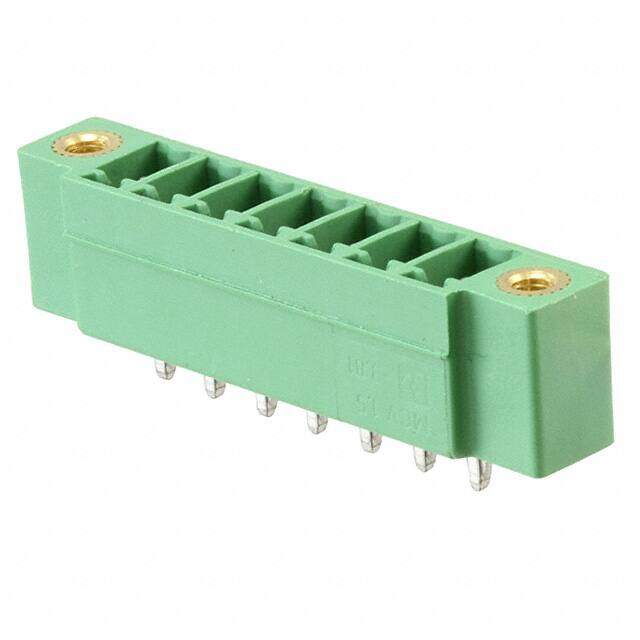

Pluggable Terminal Blocks 7 Pos 3.81mm pitch Press In Header
PDF
/
Inventory: 1156
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 3mm
Technical
Header Orientation Vertical
Safety Approval UL
Number of Ways 7
Voltage - IEC 250V
Number of Decks 1
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.150 3.81mm
Voltage 300V
Termination Style Press-Fit
Current Rating 8A
Insulation Height 0.362 9.20mm
Depth 3mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 7
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON EMCV
Published 2011
Packaging Bulk
Physical
Weight 2.759996g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 3 Weeks
