1879311
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

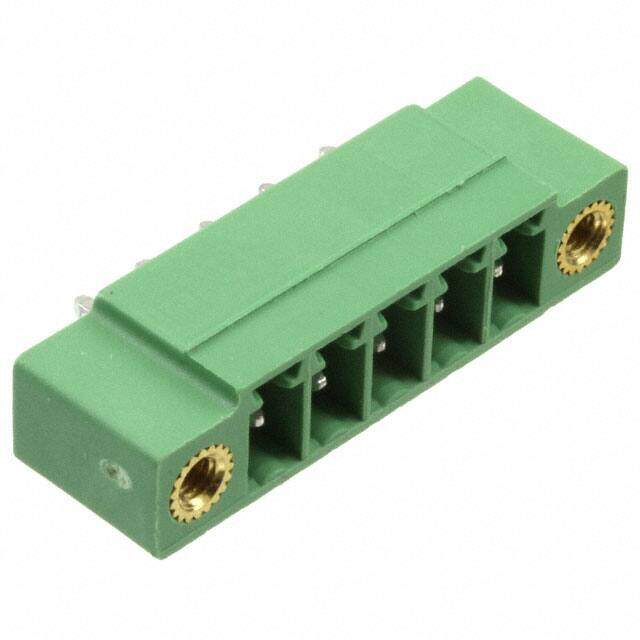

Pluggable Terminal Blocks 5 Pos 3.81mm pitch Press In Header
PDF
/
Inventory: 1186
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 2.270003g
Technical
Packaging Bulk
Published 2011
Series COMBICON EMCV
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PBT, 94V-0
Pitch 0.150 3.81mm
Orientation Straight
Depth 7.25mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Press-Fit
Voltage 300V
Contact Tail Length 0.150 3.81mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 250V
Number of Ways 5
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 5
Dimensions
Length 29.44mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
