1879201
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

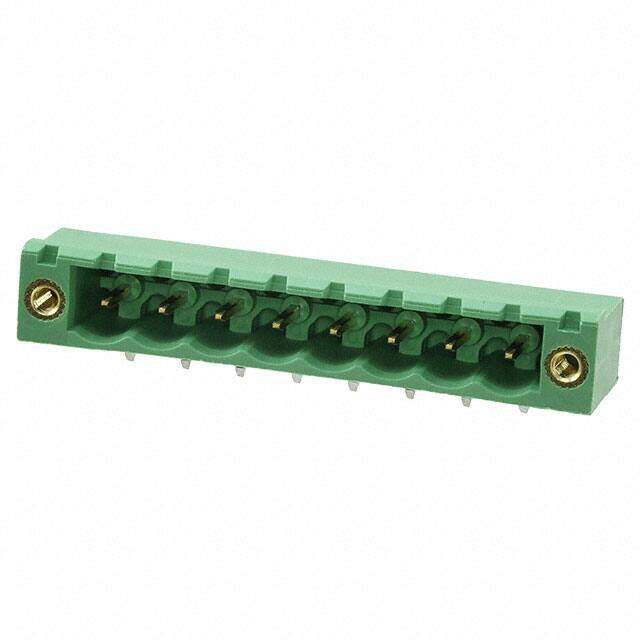

Pluggable Terminal Blocks 8 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $5.46
Unit Price: USD $5.456
≥1 USD $5.456
≥10 USD $5.30464
≥100 USD $4.95792
≥500 USD $4.561304
≥1000 USD $4.475891
Inventory: 121
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Current - IEC 12A
Header Orientation 90°, Right Angle
Voltage - IEC 250V
Contact Mating Finish Gold
Current 15A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Reach Compliance Code not_compliant
Insulation Height 0.339 8.61mm
Pitch 0.200 5.08mm
Voltage - Rated 250V
Color Green
Number of Positions 8
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating and Mounting Flange
Series COMBICON MSTB
Published 2011
Packaging Bulk
Physical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
