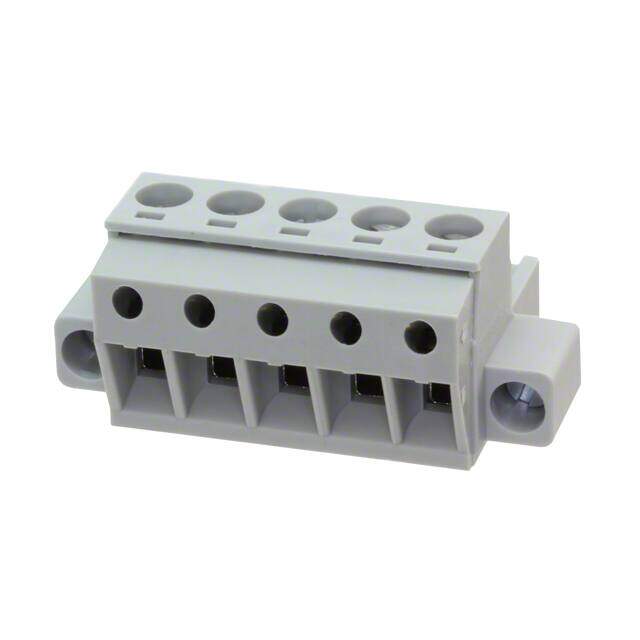

1879065 image
Favorite
1879065 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 5 Pos 5.08mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $17.32
Unit Price: USD $17.322471
≥1 USD $17.322471
≥10 USD $16.341959
≥100 USD $15.416936
≥500 USD $14.544279
≥1000 USD $13.721019
Inventory: 961
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Plating Gold
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 804.219272g

Technical

Packaging Bulk
Published 2011
Series COMBICON MSTBP
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 5
Color Gray
Number of Rows 1
Voltage - Rated 250V
Pitch 0.200 5.08mm
Orientation Right Angle
Reach Compliance Code unknown
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 5
Housing Color Grey
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 15A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 5
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3

Dimensions

Height 21.3mm
Length 15mm
Width 35.42mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
