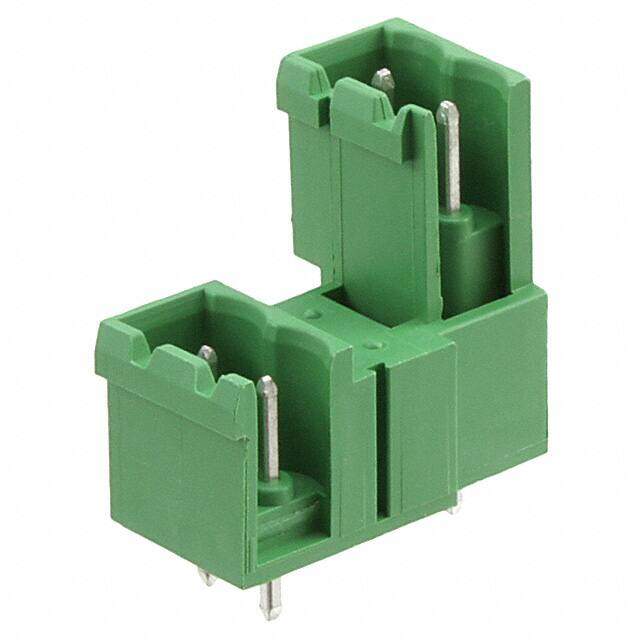

1877627
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $6.07
Unit Price: USD $6.072148
≥1 USD $6.072148
≥10 USD $5.728445
≥100 USD $5.404189
≥500 USD $5.098284
≥1000 USD $4.80971
Inventory: 8889
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 25.6mm
Length 14.7mm
Height 23.7mm
Technical
Current - IEC 10A
Header Orientation 90°, Right Angle, Vertical
Number of Ways 2
Voltage - IEC 400V
Number of Decks 2
Voltage - UL 300V
Current 12A
Voltage 300V
Termination Style Solder
Current Rating 10A
Pitch 0.200 5.08mm
Additional Feature PBT
Voltage - Rated 250V
Number of Rows 2
Color Green
Number of Positions 4
Type Header, Male Pins, Shrouded (3 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side)
Series COMBICON MDSTBVA
Published 2011
Packaging Bulk
Physical
Weight 3.179994g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 5 Weeks
