1877614
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

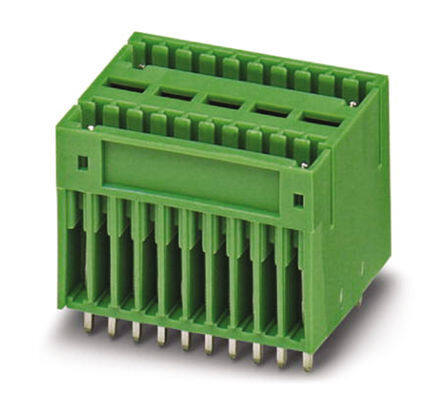

COMBICON MDSTBA RoHS Compliant 2011 Right Angle Terminal Block Header, Male Pins, Shrouded (3 Side) 90° Right Angle 15A 300V 13.7mm
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 3.289991g
Technical
Packaging Bulk
Published 2011
Series COMBICON MDSTBA
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (3 Side)
Number of Positions 4
Color Green
Number of Rows 2
Voltage - Rated 250V
Additional Feature PBT
Pitch 0.200 5.08mm
Orientation Right Angle
Current Rating 10A
Termination Style Solder
Voltage 300V
Max Current Rating 10A
Current 15A
Contact Mating Finish Tin
Number of Decks 2
Voltage - IEC 400V
Positions Per Level 2
Number of Ways 2
Header Orientation 90°, Right Angle
Dimensions
Length 13.7mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
