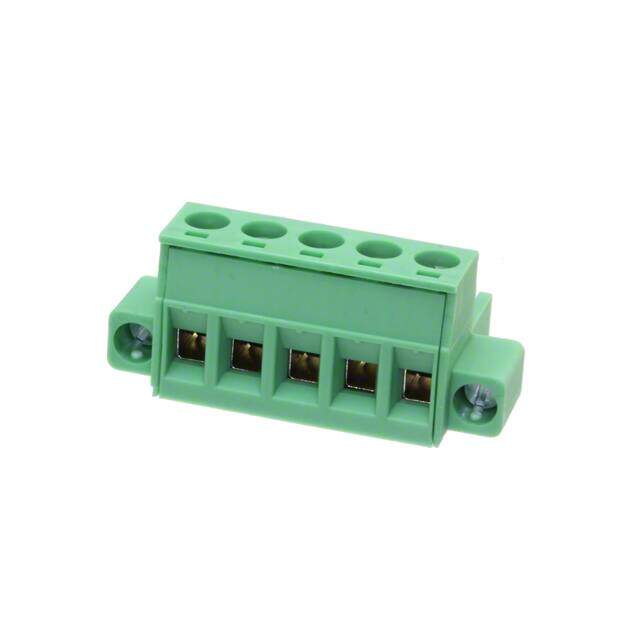

1876628
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Terminal Blocks F 5 POS 5.08mm Screw RA Panel Mount 12A
PDF
/
Buying Options
Total Price: USD $7.16
Unit Price: USD $7.1632
≥1 USD $7.1632
≥10 USD $6.84728
≥100 USD $6.660896
≥500 USD $6.22512
≥1000 USD $5.72711
≥3000 USD $5.619891
Inventory: 87
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 35.41mm
Length 15mm
Height 18.2mm
Technical
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL; CSA
Number of Ways 5
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 15A
Number of Levels 1
Max Current Rating 12A
Max Supply Voltage 250V
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Insulation Height 0.591 15.00mm
Orientation Right Angle
Pitch 0.200 5.08mm
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 5
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON MSTB
Published 2011
Packaging Bulk
Physical
Weight 9.180001g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold
Supply Chain
Factory Lead Time 6 Weeks
