1876291
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

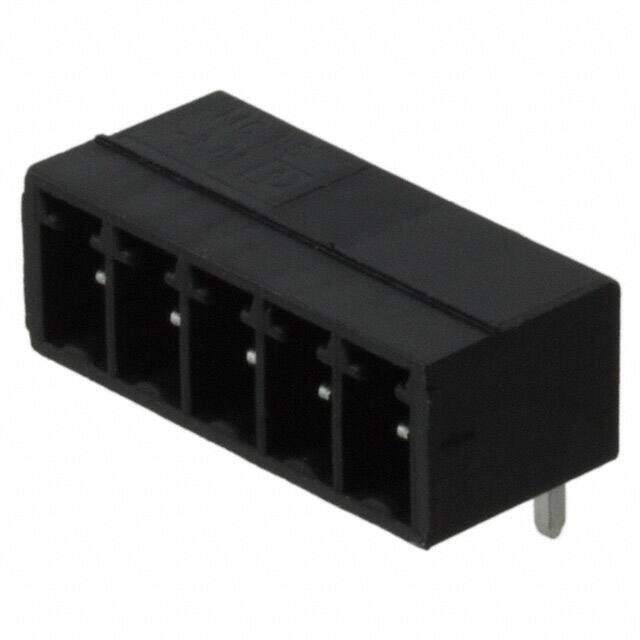

TERM BLOCK HDR 5POS 90DEG 3.5MM
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.716
≥1 USD $1.716
≥10 USD $1.66936
≥100 USD $1.56024
≥500 USD $1.435456
≥1000 USD $1.408563
Inventory: 3878
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 27.8mm
Length 9.2mm
Height 10.65mm
Technical
Header Orientation 90°, Right Angle
Voltage - IEC 160V
Current 8A
Number of Levels 1
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.285 7.25mm
Pitch 0.138 3.50mm
Voltage - Rated 160V
Color Black
Number of Positions 5
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON MC
Published 2011
Packaging Bulk
Physical
Weight 165.000008g
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
