1875551
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

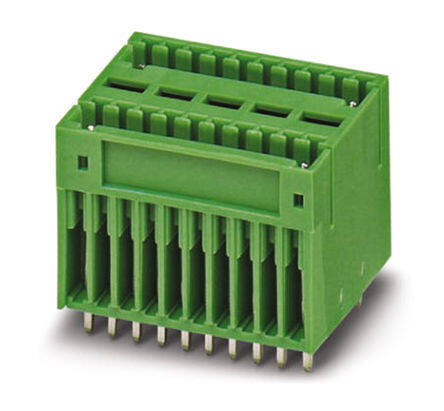

Pluggable Terminal Blocks 15 Pos 3.81mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $15.99
Unit Price: USD $15.990101
≥1 USD $15.990101
≥10 USD $15.085004
≥100 USD $14.231136
≥500 USD $13.425595
≥1000 USD $12.665661
Inventory: 1915
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 5.050014g
Technical
Packaging Bulk
Published 2011
Series COMBICON IMCV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Female Sockets
Number of Positions 15
Color Green
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Insulation Height 0.571 14.50mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - IEC 320V
Header Orientation Vertical
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
