1875522
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

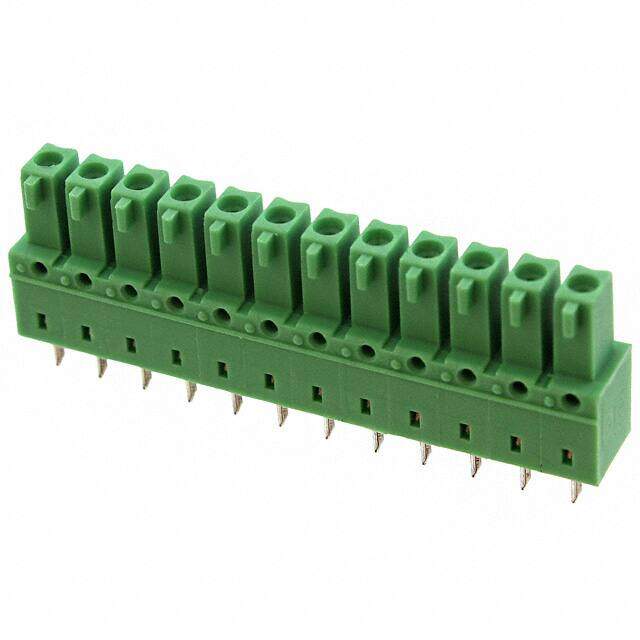

Phoenix Contact IMCV 1.5/12-G-3.81, 3.81mm Pitch, 12 Way PCB Terminal Block Header
PDF
/
Buying Options
Total Price: USD $10.96
Unit Price: USD $10.956
≥1 USD $10.956
≥10 USD $10.6612
≥100 USD $9.96336
≥500 USD $9.166344
≥1000 USD $8.994691
Inventory: 314
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 4.090014g
Technical
Packaging Bulk
Published 2010
Series COMBICON IMCV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Socket
Type Header, Female Sockets
Number of Positions 12
Color Green
Number of Rows 1
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Depth 6.85mm
Insulation Height 0.571 14.50mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Number of Decks 1
Voltage - IEC 320V
Number of Ways 12
Header Orientation Vertical
Fastening Method PLUG IN
Dimensions
Height 17.9mm
Length 46.51mm
Width 46.51mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
