1875483
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

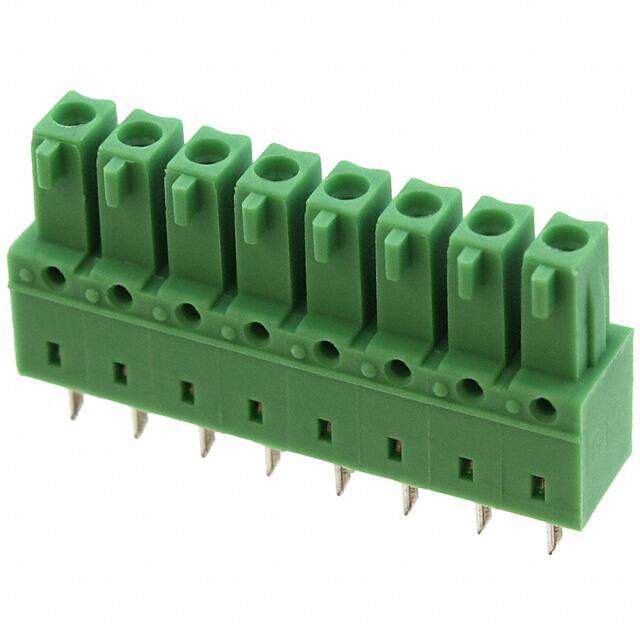

Phoenix Contact IMCV 1.5/ 8-G-3.81, 3.81mm Pitch, 8 Way PCB Terminal Block Header
PDF
/
Buying Options
Total Price: USD $7.29
Unit Price: USD $7.2864
≥1 USD $7.2864
≥10 USD $7.08488
≥100 USD $6.62112
≥500 USD $6.091448
≥1000 USD $5.977382
Inventory: 115
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 31.27mm
Length 31.27mm
Height 17.9mm
Technical
Header Orientation Vertical
Safety Approval UL; VDE
Number of Ways 8
Voltage - IEC 320V
Number of Decks 1
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.571 14.50mm
Depth 6.85mm
Pitch 0.150 3.81mm
Additional Feature PA, UL 94 V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 8
Type Header, Female Sockets
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON IMCV
Published 2011
Packaging Bulk
Physical
Weight 2.74001g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
