1875454
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

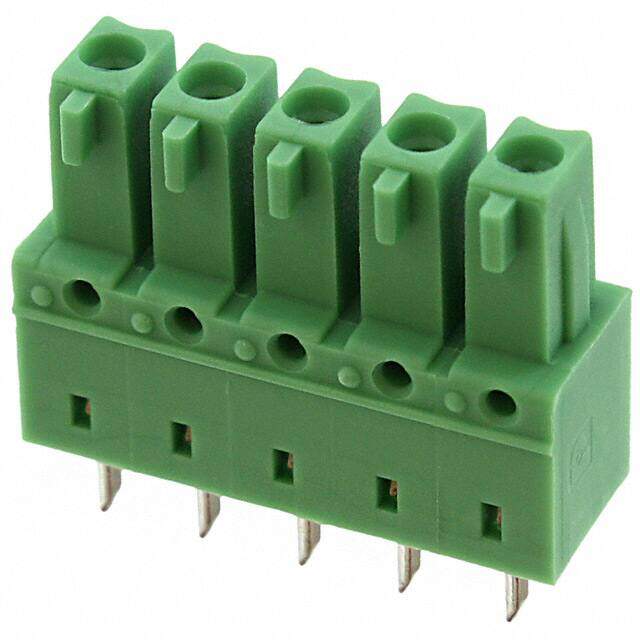

COMBICON IMCV RoHS Compliant 2011 Straight Terminal Block Header, Female Sockets UL94V-0 Vertical 8A 300V
PDF
/
Buying Options
Total Price: USD $4.57
Unit Price: USD $4.5672
≥1 USD $4.5672
≥10 USD $4.44048
≥100 USD $4.15008
≥500 USD $3.818056
≥1000 USD $3.746618
Inventory: 1084
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 120.999989g
Technical
Packaging Bulk
Published 2011
Series COMBICON IMCV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Socket
Type Header, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA; 94V-0
Pitch 0.150 3.81mm
Orientation Straight
Insulation Height 0.571 14.50mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Number of Decks 1
Voltage - IEC 320V
Number of Ways 5
Header Orientation Vertical
Number of Positions Per Level 5
Fastening Method PLUG IN
Dimensions
Height 17.9mm
Length 19.84mm
Width 19.84mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
