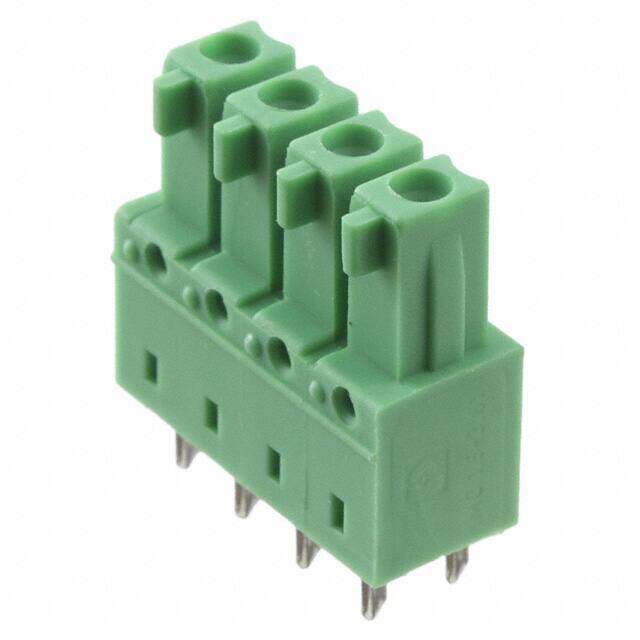

1875441
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 3.81mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $1.74
Unit Price: USD $1.74158
≥1 USD $1.74158
≥10 USD $1.643
≥100 USD $1.55
≥500 USD $1.46226
Inventory: 12800
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 120.999989g
Technical
Packaging Bulk
Published 2012
Series COMBICON IMCV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Socket
Type Header, Female Sockets
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 160V
Pitch 0.150 3.81mm
Orientation Straight
Depth 6.85mm
Insulation Height 0.571 14.50mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Number of Decks 1
Voltage - IEC 320V
Number of Ways 4
Safety Approval CB; CCA; CUL; EAC; UL; VDE
Header Orientation Vertical
Number of Positions Per Level 4
Fastening Method CONNECTOR
Dimensions
Height 16.03mm
Length 16.03mm
Width 7.8mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
