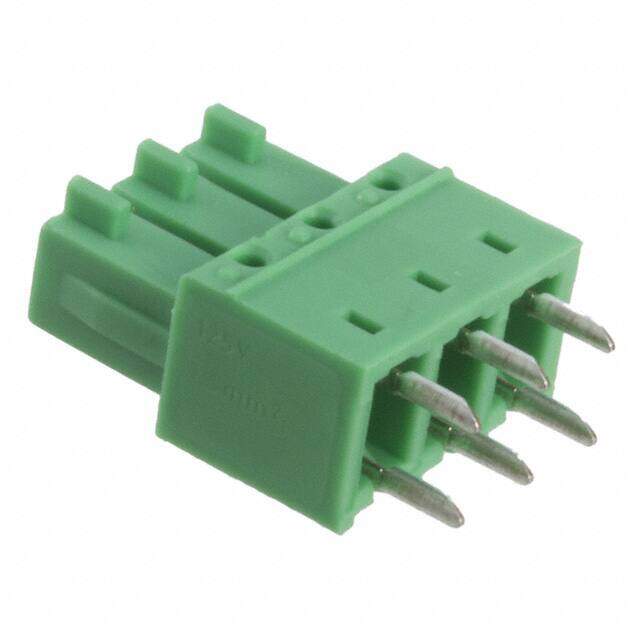

1875438 image
Favorite
1875438 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Connector; PCB Header; 3Position; 8A; 160V; IMCV 1 5/ 3-G-3 81
PDF
/
Buying Options
Total Price: USD $2.75
Unit Price: USD $2.7544
≥1 USD $2.7544
≥10 USD $2.67784
≥100 USD $2.50272
≥500 USD $2.30252
≥1000 USD $2.259418
Inventory: 369
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 17.9mm
Length 6.85mm
Height 12.22mm

Technical

Fastening Method CONNECTOR
Header Orientation Vertical
Safety Approval CB; CCA; CUL; EAC; UL; VDE
Number of Ways 3
Voltage - IEC 320V
Number of Decks 1
Current 8A
Number of Levels 1
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.571 14.50mm
Pitch 0.150 3.81mm
Additional Feature STANDARD: UL 94V-0, PA
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 3
Type Header, Female Sockets
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON IMCV
Published 2011
Packaging Bulk

Physical

Weight 120.999989g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
