1875140
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

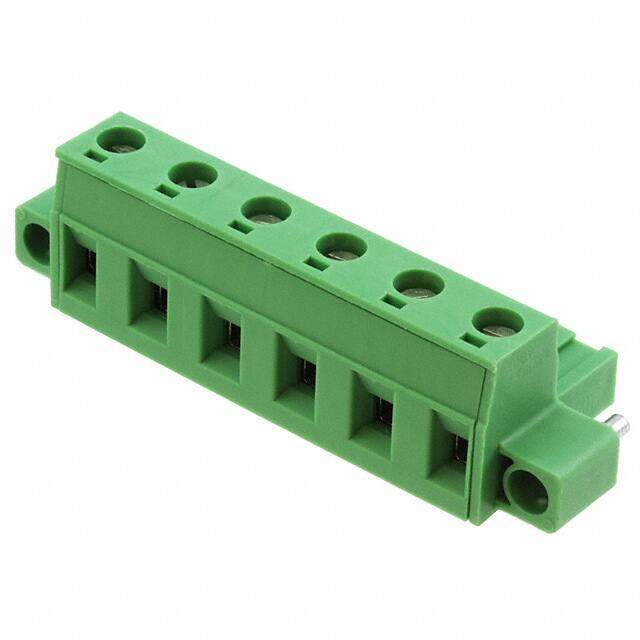

TERM BLOCK PLUG 6POS STR 7.62MM
PDF
/
Buying Options
Total Price: USD $10.72
Unit Price: USD $10.7184
≥1 USD $10.7184
Inventory: 97
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 1kV
Contact Mating Finish Gold
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 15A
Number of Levels 1
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Reach Compliance Code not_compliant
Insulation Height 0.591 15.00mm
Pitch 0.300 7.62mm
Voltage - Rated 400V
Color Green
Number of Positions 6
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange
Series COMBICON GMSTB
Published 2011
Packaging Bulk
Physical
Weight 12.849988g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 5 Weeks
