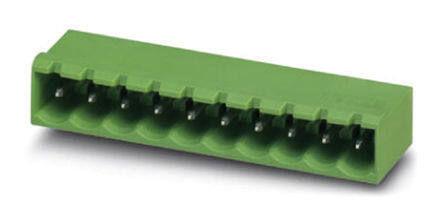

1874688
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 1256
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 6.409997g
Technical
Packaging Bulk
Published 2010
Series COMBICON MDSTBV
Feature Interlocking (Side), Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 6
Color Green
Number of Rows 2
Voltage - Rated 250V
Additional Feature PBT
Pitch 0.200 5.08mm
Insulation Height 0.866 22.00mm
Current Rating 10A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 2
Current 12A
Number of Decks 2
Voltage - IEC 400V
Positions Per Level 3
Number of Ways 3
Header Orientation Vertical
Current - IEC 10A
Dimensions
Height 23.7mm
Length 17.78mm
Width 25.9mm
Compliance
RoHS Status RoHS Compliant
