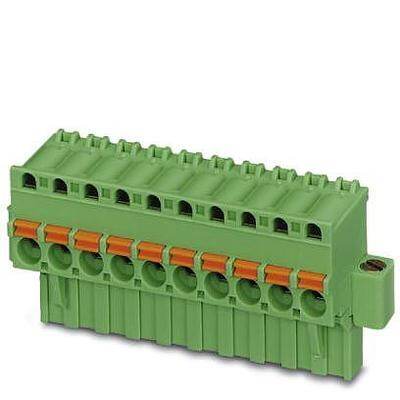

1874125
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 5.08mm pitch Plug 24-12AWG Spring
PDF
/
Buying Options
Total Price: USD $4.28
Unit Price: USD $4.2768
≥1 USD $4.2768
≥10 USD $4.16064
≥100 USD $3.88872
≥500 USD $3.57764
≥1000 USD $3.510637
Inventory: 84
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 7.920006g
Technical
Packaging Bulk
Published 2011
Series COMBICON FKCVR
Feature Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 4
Color Green
Number of Rows 1
Voltage - Rated 250V
Pitch 0.200 5.08mm
Insulation Height 0.661 16.80mm
Current Rating 12A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 4
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Dimensions
Height 26.6mm
Length 16.8mm
Width 30.42mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
