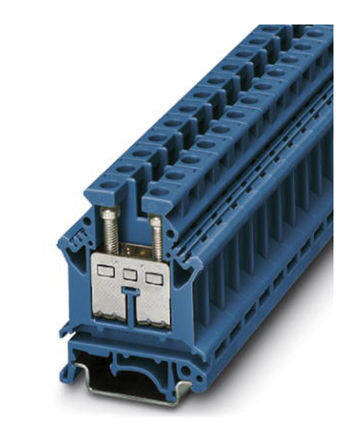

1874073
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON FKCVR RoHS Compliant 2011 Retention Latches (Non-Wire Side) Terminal Block Plug, Female Sockets UL94V-0 12AWG 90° 10A
PDF
/
Inventory: 1136
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method SPRING LOADED
Wire Cross Section 2.5 mm2
Current - IEC 12A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Safety Approval UL
Number of Ways 14
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 12A
Insulation Height 0.661 16.80mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 14
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON FKCVR
Published 2011
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 5 Weeks
