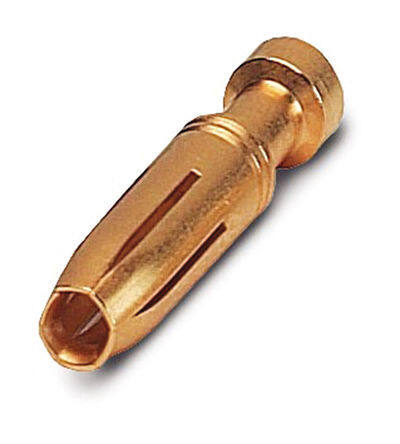

1873980
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Spring Cage F 5 POS 5.08mm Screw RA Cable Mount 12A
PDF
/
Buying Options
Total Price: USD $6.22
Unit Price: USD $6.217381
≥1 USD $6.217381
≥10 USD $5.865458
≥100 USD $5.533445
≥500 USD $5.220237
≥1000 USD $4.924747
Inventory: 4893
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 8.720001g
Technical
Packaging Bulk
Published 2011
Series COMBICON FKCVR
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 5
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, UL 94V-0
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 26.6mm
Insulation Height 0.661 16.80mm
Current Rating 12A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 5
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Fastening Method SPRING LOADED
Dimensions
Height 26.6mm
Length 26.02mm
Width 36.02mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
