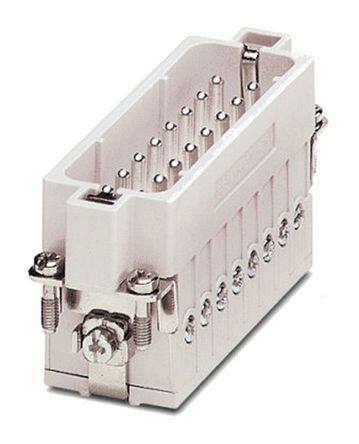

1873618
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK
PDF
/
Inventory: 1195
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Rated Voltage 320V
Fastening Method SPRING LOADED
Wire Cross Section 2.5 mm2
Current - IEC 12A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 13
Voltage - IEC 320V
Current - UL 10A
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Termination Style Screwless - Push-In Spring
Insulation Height 0.591 15.00mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Number of Rows 1
Color Green
Number of Positions 13
Type Plug, Male Pins
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON FKIC
Published 2015
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
