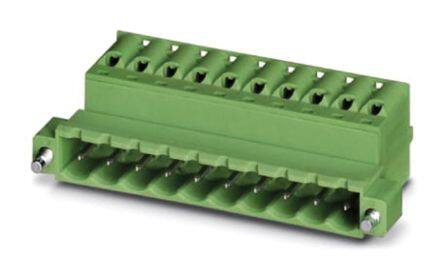

1873508
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 5.08mm Invert Plug 24-12AWG Spring
PDF
/
Buying Options
Total Price: USD $2.41
Unit Price: USD $2.406461
≥1 USD $2.406461
≥10 USD $2.270245
≥100 USD $2.141742
≥500 USD $2.020511
≥1000 USD $1.906147
Inventory: 1096
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 4.230004g
Technical
Packaging Bulk
Published 2010
Series COMBICON FKIC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Male Pins
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 320V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 2
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Number of Positions Per Level 2
Fastening Method SPRING LOADED
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
