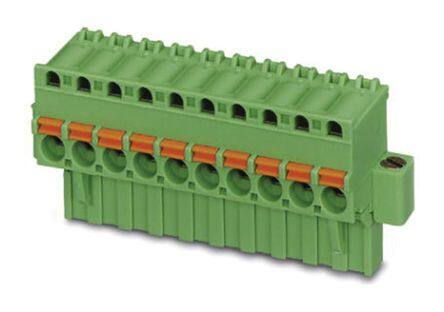

1873430
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 10 Pos 5.08mm Invert Plug 24-12AWG Spring
PDF
/
Buying Options
Total Price: USD $13.94
Unit Price: USD $13.944012
≥1 USD $13.944012
≥10 USD $13.154726
≥100 USD $12.410123
≥500 USD $11.707664
≥1000 USD $11.044964
Inventory: 3437
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 142.000011g
Technical
Packaging Bulk
Published 2010
Series COMBICON FKIC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Plug
Type Plug, Male Pins
Number of Positions 10
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 10
Safety Approval UL
Plug Wire Entry 180┬?
Wire Gauge or Range - mm┬▓ 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Dimensions
Height 27mm
Length 15mm
Width 52.8mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
