1873414
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

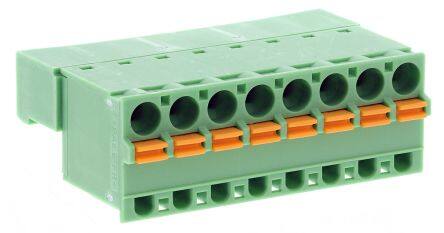

Pluggable Terminal Blocks 8 Pos 5.08mm Invert Plug 24-12AWG Spring
PDF
/
Buying Options
Total Price: USD $11.3
Unit Price: USD $11.295995
≥1 USD $11.295995
≥10 USD $10.656603
≥100 USD $10.053399
≥500 USD $9.484336
≥1000 USD $8.947489
Inventory: 6695
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 42.64mm
Length 15mm
Height 27mm
Technical
Fastening Method SPRING LOADED
Wire Cross Section 2.5 mm2
Current - IEC 12A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 8
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 12A
Insulation Height 0.591 15.00mm
Pitch 0.200 5.08mm
Additional Feature PA, 94V-0
Voltage - Rated 320V
Number of Rows 1
Color Green
Number of Positions 8
Type Plug, Male Pins
Connector Type Plug
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON FKIC
Published 2009
Packaging Bulk
Physical
Weight 13.199992g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
