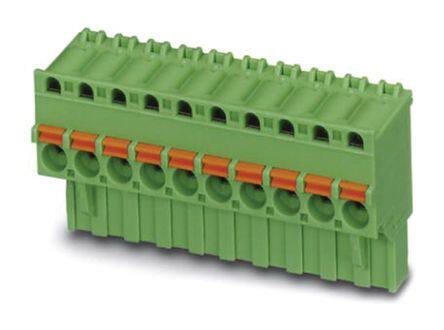

1873388
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 5 Pos 5.08mm Invert Plug 24-12AWG Spring
PDF
/
Buying Options
Total Price: USD $6.77
Unit Price: USD $6.774946
≥1 USD $6.774946
≥10 USD $6.391457
≥100 USD $6.029677
≥500 USD $5.68838
≥1000 USD $5.366392
Inventory: 8123
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 7.979994g
Technical
Packaging Bulk
Published 2011
Series COMBICON FKIC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Plug
Type Plug, Male Pins
Number of Positions 5
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature PA, 94V-0
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 5
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Fastening Method SPRING LOADED
Dimensions
Height 27mm
Length 15mm
Width 27.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
