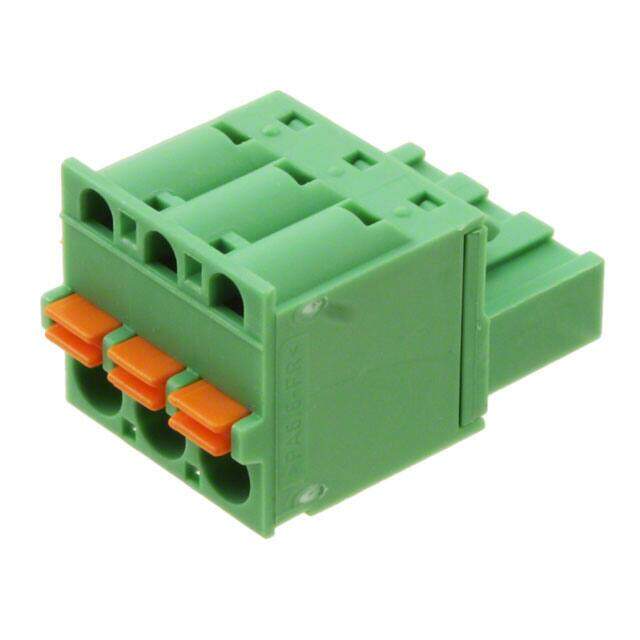

1873061
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 3POS STR 5.08MM
PDF
/
Buying Options
Total Price: USD $1.65
Unit Price: USD $1.65384
≥1 USD $1.65384
≥10 USD $1.56023
≥100 USD $1.47192
≥500 USD $1.3886
≥1000 USD $1.31
≥3000 USD $1.23585
Inventory: 2083
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 207.999998g
Technical
Packaging Bulk
Published 2010
Series COMBICON FKC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, 94V-0
Pitch 0.200 5.08mm
Orientation Straight
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screwless - Leg Spring, Push-In Spring
Approval Agency CB, VDE, cULus
Contact Gender Female
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 3
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 3
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Test Voltage 4kV
Dimensions
Height 15.86mm
Length 15mm
Width 25.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
