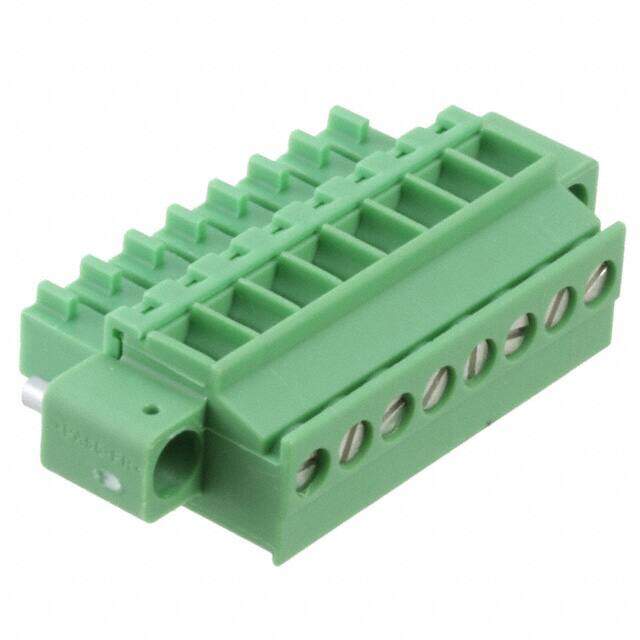

1863369
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 3.5mm pitch Plug 28-16 AWG Screw
PDF
/
Buying Options
Total Price: USD $7.77
Unit Price: USD $7.7704
≥1 USD $7.7704
≥10 USD $7.5592
≥100 USD $7.06464
≥500 USD $6.499504
≥1000 USD $6.377818
Inventory: 78
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 6.749993g
Technical
Packaging Bulk
Published 2010
Series COMBICON MCVR
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA, 94V-0
Pitch 0.138 3.50mm
Orientation Straight
Insulation Height 0.752 19.10mm
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 8
Voltage 300V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 8
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Dimensions
Height 12.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
