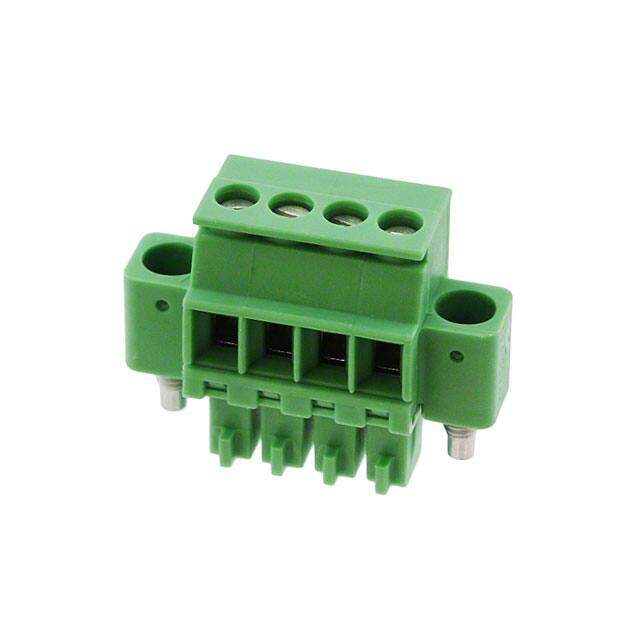

1863327
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 3.5mm pitch Plug 28-16 AWG Screw
PDF
/
Buying Options
Total Price: USD $3.29
Unit Price: USD $3.2912
≥1 USD $3.2912
Inventory: 115
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 3.869993g
Technical
Packaging Bulk
Published 2011
Series COMBICON MCVR
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 160V
Pitch 0.138 3.50mm
Orientation Straight
Depth 10.4mm
Insulation Height 0.752 19.10mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 4
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 4
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
