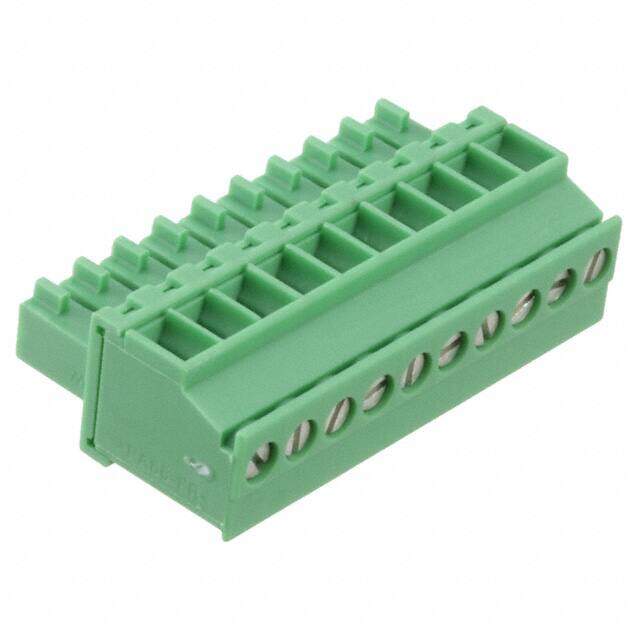

1863233 image
Favorite
1863233 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 10 Pos 3.5mm pitch Plug 28-16 AWG Screw
PDF
/
Buying Options
Total Price: USD $9.61
Unit Price: USD $9.6096
≥1 USD $9.6096
≥10 USD $9.34736
≥100 USD $8.73576
≥500 USD $8.036952
≥1000 USD $7.886454
Inventory: 324
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 10.4mm
Length 35.8mm
Height 12.5mm

Technical

Stripping Length 7mm
Screw Size M2
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 90°
Safety Approval CB; CCA; CUL; GOST; UL; VDE
Number of Ways 10
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Number of Decks 1
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Voltage 300V
Number of Contacts 10
Lead Pitch 3.5mm
Approval Agency CB, UL, VDE, cULus
Voltage - Rated AC 160V
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Insulation Height 0.752 19.10mm
Depth 19.1mm
Orientation Straight
Pitch 0.138 3.50mm
Voltage - Rated DC 160V
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MCVR
Published 2008
Packaging Bulk

Physical

Weight 7.599997g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
