1863220
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

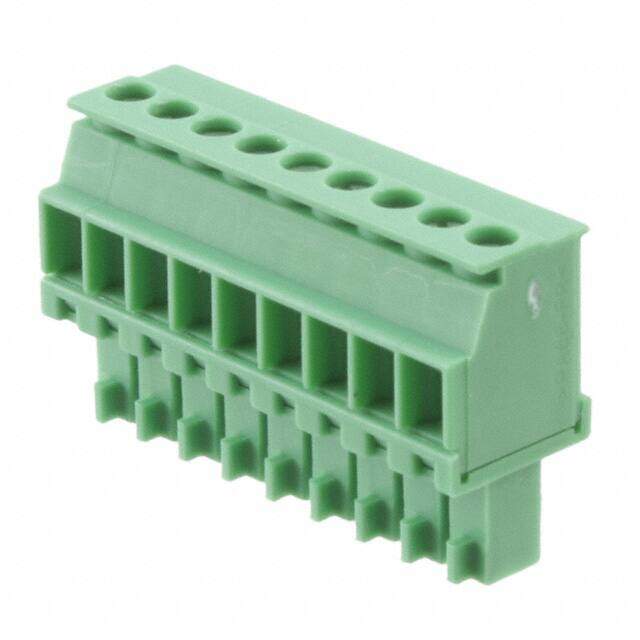

Conn Terminal Blocks F 9 POS 3.5mm Screw ST Cable Mount 8A
PDF
/
Buying Options
Total Price: USD $8.67
Unit Price: USD $8.668
≥1 USD $8.668
≥10 USD $8.43216
≥100 USD $7.8804
≥500 USD $7.249968
≥1000 USD $7.114237
Inventory: 520
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 7.329996g
Technical
Packaging Bulk
Published 2005
Series COMBICON MCVR
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated DC 160V
Pitch 0.138 3.50mm
Orientation Straight
Depth 10.4mm
Insulation Height 0.752 19.10mm
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Voltage - Rated AC 160V
Approval Agency CB, UL, VDE, cULus
Lead Pitch 3.5mm
Number of Contacts 9
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 9
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.14-1.5mm2
Screw Size M2
Stripping Length 7mm
Dimensions
Height 12.5mm
Length 32.3mm
Width 10.4mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
