1863152
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

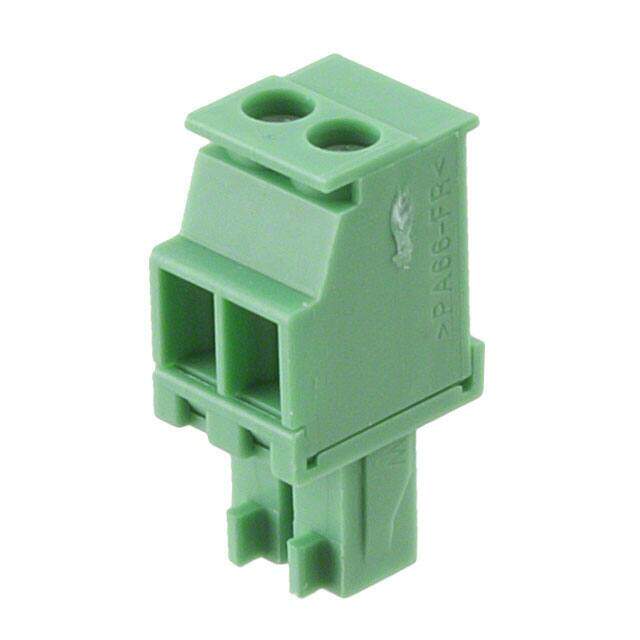

Conn Terminal Blocks F 2 POS 3.5mm Screw ST Cable Mount 8A
PDF
/
Buying Options
Total Price: USD $1.94
Unit Price: USD $1.936
≥1 USD $1.936
≥10 USD $1.88144
≥100 USD $1.75824
≥500 USD $1.617616
≥1000 USD $1.587309
Inventory: 3671
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 99.999994g
Technical
Packaging Bulk
Published 2008
Series COMBICON MCVR
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Voltage - Rated DC 160V
Pitch 0.138 3.50mm
Orientation Straight
Depth 19.1mm
Insulation Height 0.752 19.10mm
Reach Compliance Code not_compliant
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Voltage - Rated AC 160V
Approval Agency UL, VDE, cULus
Lead Pitch 3.5mm
Number of Contacts 2
Voltage 300V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 2
Safety Approval CB; CCA; CUL; GOST; UL; VDE
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.14-1.5mm2
Screw Size M2
Stripping Length 7mm
Dimensions
Height 12.5mm
Length 7.8mm
Width 10.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
