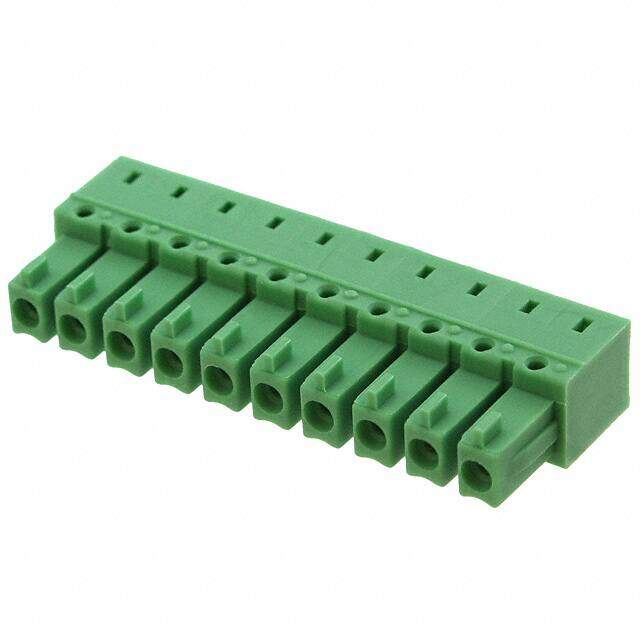

1862658 image
Favorite
1862658 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description MINI COMBICON IMC Series 3.81mm Pitch Straight Pluggable Trm Blk; Inverted Header
PDF
/
Buying Options
Total Price: USD $9.11
Unit Price: USD $9.108
≥1 USD $9.108
≥10 USD $8.85544
≥100 USD $8.2764
≥500 USD $7.614288
≥1000 USD $7.471763
Inventory: 215
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 3.369993g

Technical

Packaging Bulk
Published 2011
Series COMBICON IMC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Socket
Type Header, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 160V
Additional Feature STANDARD: UL 94V-0, PA
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 14.5mm
Insulation Height 0.270 6.86mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Number of Poles 10
Number of Decks 1
Voltage - IEC 320V
Number of Ways 10
Safety Approval CB; CCA; CUL; EAC; UL; VDE
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR

Dimensions

Height 7mm
Length 38.89mm
Width 14.5mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
