1862632
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

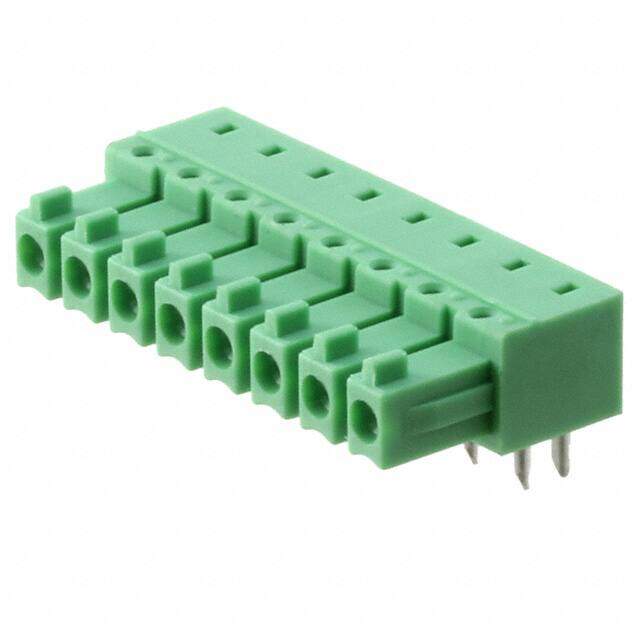

Pluggable Terminal Blocks 8 Pos 3.81mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $8.6
Unit Price: USD $8.597971
≥1 USD $8.597971
≥10 USD $8.111292
≥100 USD $7.652164
≥500 USD $7.219025
≥1000 USD $6.810397
Inventory: 1356
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 120.999989g
Technical
Packaging Bulk
Published 2011
Series COMBICON IMC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Socket
Type Header, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature STANDARD: UL 94V-0, PA
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 14.5mm
Insulation Height 0.270 6.86mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Number of Decks 1
Voltage - IEC 320V
Number of Ways 8
Safety Approval CB; CCA; CUL; EAC; UL; VDE
Header Orientation 90°, Right Angle
Number of Positions Per Level 8
Fastening Method CONNECTOR
Dimensions
Height 14.5mm
Length 31.27mm
Width 31.27mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
