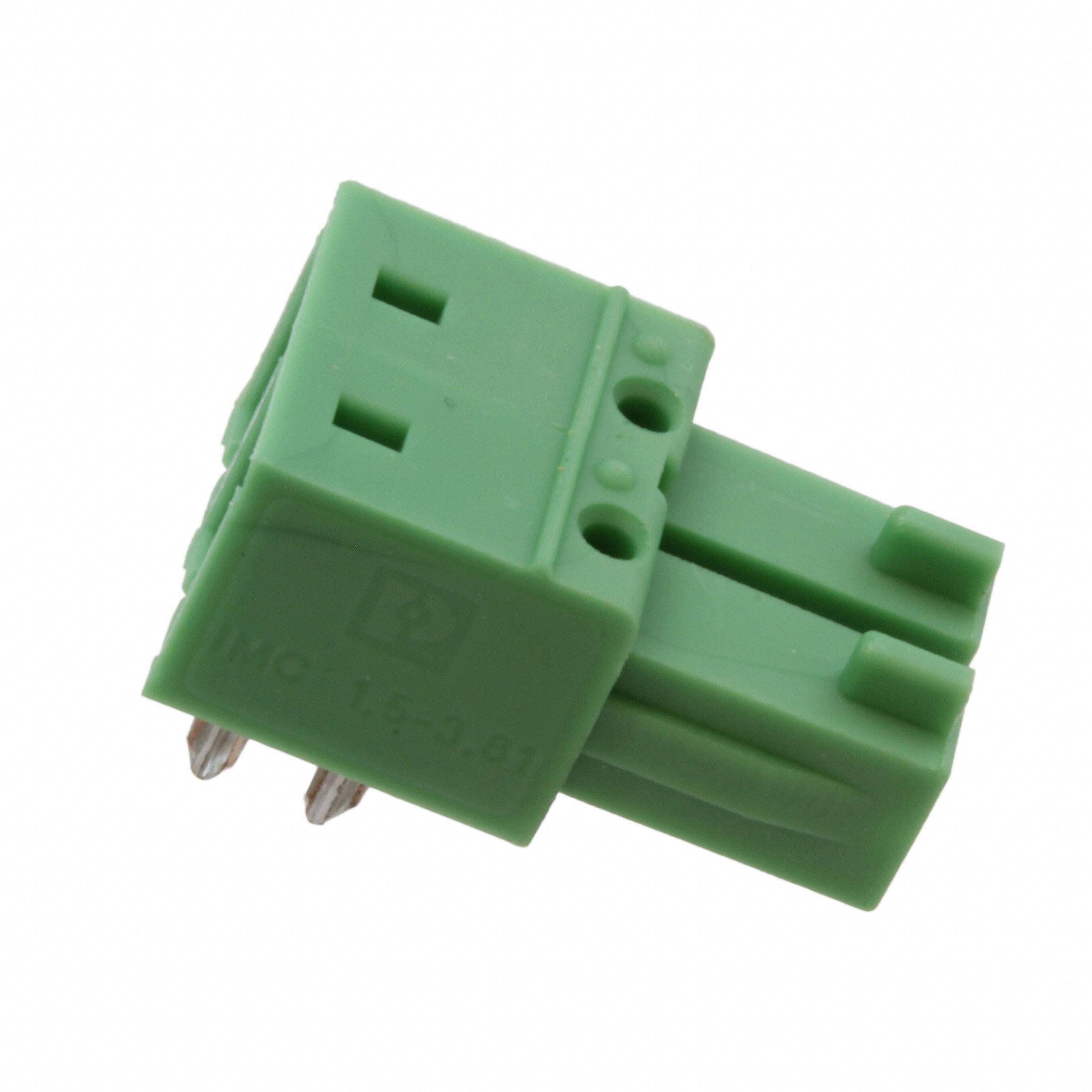

1862577 image
Favorite
1862577 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 2 Pos 3.81mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $1.86
Unit Price: USD $1.8568
≥1 USD $1.8568
≥10 USD $1.80488
≥100 USD $1.68696
≥500 USD $1.551968
≥1000 USD $1.522963
Inventory: 169
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 14.5mm
Length 8.41mm
Height 10.25mm

Technical

Fastening Method PLUG IN
Number of Positions Per Level 2
Header Orientation 90°, Right Angle
Number of Ways 2
Voltage - IEC 320V
Number of Decks 1
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.270 6.86mm
Depth 14.5mm
Orientation Right Angle
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PA; 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Type Header, Female Sockets
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON IMC
Published 2003
Packaging Bulk

Physical

Weight 120.999989g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
