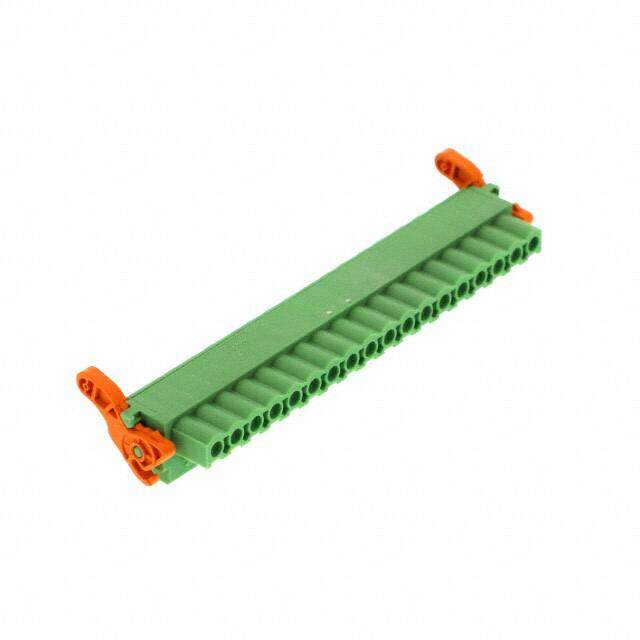

1861852 image
Favorite
1861852 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description CONN TERM BLOCK PLG 18POS 5.08MM
PDF
/
Buying Options
Total Price: USD $44.65
Unit Price: USD $44.646477
≥1 USD $44.646477
≥200 USD $17.81474
≥500 USD $17.219996
≥1000 USD $16.925907
Inventory: 1104
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon

Technical

Packaging Bulk
Published 2018
Series COMBICON FKCOR
Feature Ejector Latches, Lever Actuated, Retention Latches (Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Plug, Female Sockets
Number of Positions 18
Color Green
Pitch 0.200 5.08mm
Insulation Height 1.146 29.10mm
Termination Style Screwless - Leg Spring, Push-In Spring
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 320V
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
