1861808
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

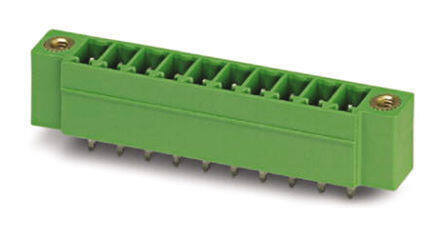

Pluggable Terminal Blocks 10 Pos 3.81mm pitch Through Hole Header
PDF
/
Inventory: 1194
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation 90°, Right Angle, Vertical
Safety Approval UL
Number of Ways 10
Voltage - IEC 200V
Number of Decks 1
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 1.555 39.49mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PA/PBT, 94V-0
Voltage - Rated 125V
Number of Rows 1
Color Green
Number of Positions 10
Type Header, Male Pins, Shrouded (2 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MCO
Published 2011
Packaging Bulk
Physical
Weight 1.50003kg
Housing Material Polyamide
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
