1861769
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

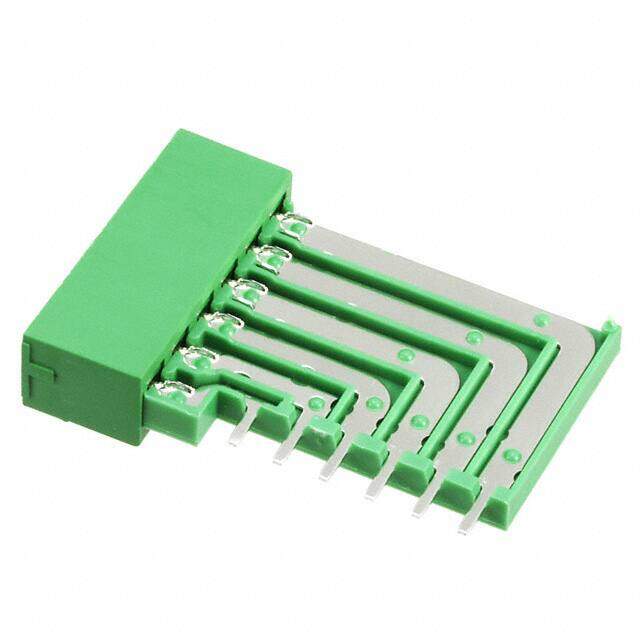

Pluggable Terminal Blocks 6 Pos 3.81mm pitch Through Hole Header
PDF
/
Inventory: 1146
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide
Weight 115.000011g
Technical
Packaging Bulk
Published 2010
Series COMBICON MCO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 125V
Additional Feature PA/PBT, 94V-0
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 7.25mm
Insulation Height 0.955 24.25mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Solder
Voltage 300V
Max Current Rating 8A
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 200V
Number of Ways 6
Safety Approval UL
Header Orientation 90°, Right Angle, Vertical
Number of Positions Per Level 6
Dimensions
Length 24.25mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
