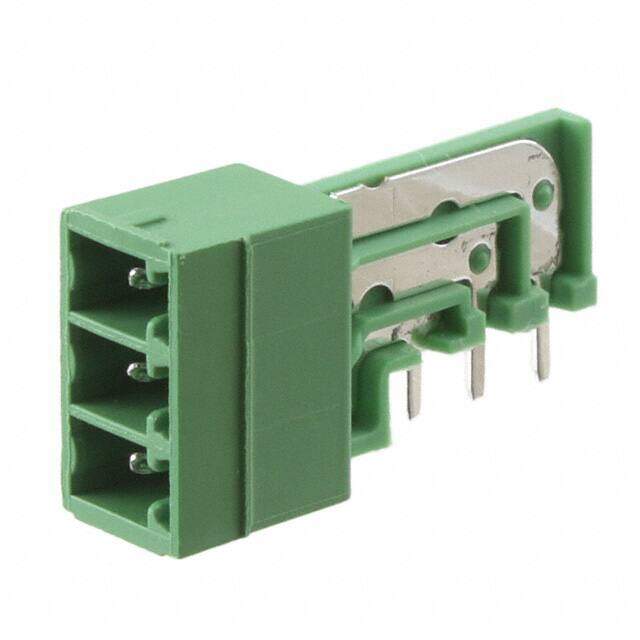

1861659
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $3.52
Unit Price: USD $3.52
≥1 USD $3.52
≥10 USD $3.42408
≥100 USD $3.19968
≥500 USD $2.943688
≥1000 USD $2.888582
Inventory: 551
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide
Weight 115.000011g
Technical
Packaging Bulk
Published 2011
Series COMBICON MCO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Color Green
Number of Rows 1
Voltage - Rated 125V
Additional Feature PA, UL 94 V-0
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 7.25mm
Insulation Height 0.505 12.82mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Max Current Rating 8A
Number of Levels 1
Current 8A
Number of Decks 1
Voltage - IEC 200V
Number of Ways 3
Safety Approval UL; VDE
Header Orientation 90°, Right Angle, Vertical
Dimensions
Height 12.82mm
Length 12.82mm
Width 25mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
