1861412
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

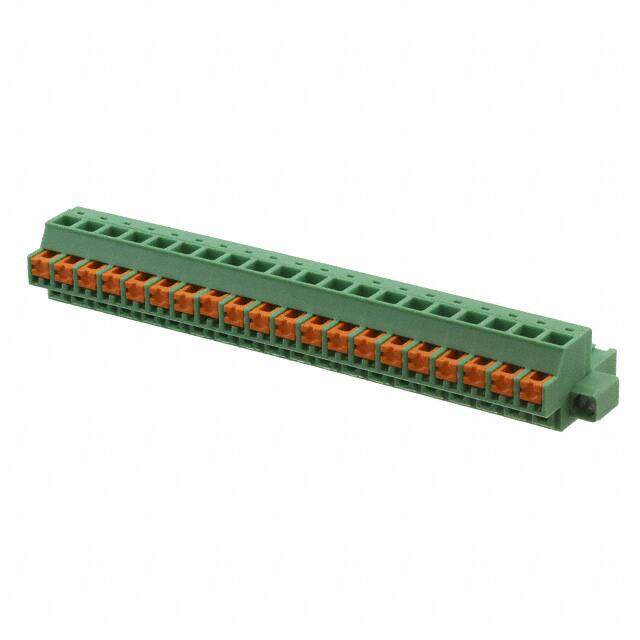

COMBICON FKCOR RoHS Compliant 2009 Lever Actuated Retention Latches (Wire Side) Terminal Block Plug, Female Sockets 12-26AWG 90° 12A 320V
PDF
/
Buying Options
Total Price: USD $46
Unit Price: USD $46.000077
≥1 USD $46.000077
≥200 USD $18.354342
≥500 USD $17.741218
≥1000 USD $17.437938
Inventory: 1082
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Current - IEC 12A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Voltage - IEC 320V
Wire Gauge or Range - AWG 12-26 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Termination Style Screwless - Leg Spring, Push-In Spring
Insulation Height 0.933 23.70mm
Pitch 0.200 5.08mm
Color Green
Number of Positions 20
Type Plug, Female Sockets
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Lever Actuated, Retention Latches (Wire Side)
Series COMBICON FKCOR
Published 2009
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Supply Chain
Factory Lead Time 9 Weeks
